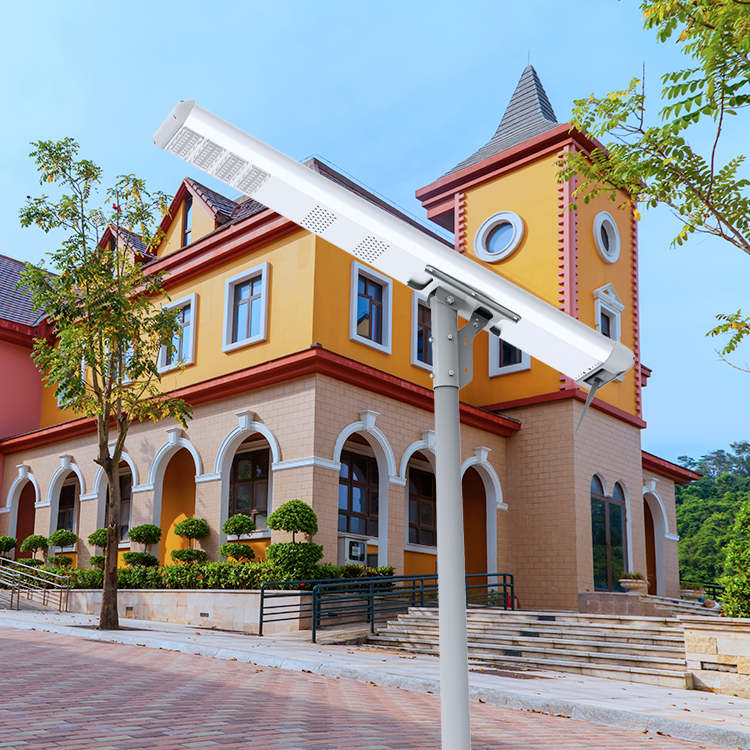

The Integrated design combined with the latest in lighting technology makes HYPERION SERIES LED solar street lights a class leader when it comes to protecting your immediate environment.
FEATURES:
1. Easy to install:
It doesn’t require an electrical grid, digging or experience with electricity. All you need to do is to put the light in a sunny spot, let it charge and enjoy.
2. Require no maintenance:
You won’t have to worry about maintenance with using Hyperion Integrated LED Solar Street Light. All they need is to make sure the solar panel on each light working at its best.
3. Cost nothing to operate:
Hyperion series integrated LED Solar Street Light cost nothing, absolutely ZERO, because they run entirely on the sunlight.
4. Integrated design:
LED solar fixtures can be used as area lights, street lights, wall lights, driveway lights, parking lot lights, security night lights, patio lights, flood lights or yard lights.
PARAMETER:
| MODEL | HP- 4000LM |
| PARAMETERS |
| PV Module | 90W |
| Life Time | 25 Years (The power attenuation of each year is around 1%) |
| LED Luminous | 4000LM |
| LED Chip | 5050 LED |
| Viewing Angle | 70°*140° |
| Color Temperature | 3000K-6500K,Typical(5500K-6000K) |
| Color Rendering Index | ＞70 |
| Life Time | ＞5 Years |
| Battery Tape | LiFePo4 Battery |
| Battery Capacity | 346WH |
| Battery Life Time | (5-8 Years) |
| MPPT Charge Controller | Including wireless communication module
(Please see the Communication topology below) |
| Timing Mode | 1Hr 50% ,4Hrs 100%,3Hrs 50%,4Hrs 25%. |
| Infrared induction is optional |
| Circuit Protection | Overcharge, discharge, short circuit, open load, lightning protection and other functions |
| Life Time | 5-8 Years |
| Charging Time (STC) | 6-8 Hrs (Under STC) |
| Certificate | CE, ROSH, IP65, ISO9000, IEC TEST REPORT |
| Working Temperature | -20℃~+60℃ (When the temperature is below -10℃, derating use) |
| Storage Temperature | 0℃~45℃ |
| Protection Grade | IP67 |
| Dimension Size(mm) | 905*350*80mm |
| Installation Height | 4 m to 6m light pole |
| Installation Diameter | <80mm |
| Installation Distance | 15m to20m |
WORKING MODE:
Normally 12 hours working time. You can set the working mode as you need once you choose smart control system with the lights.
ADAPTIVE ROAD TYPE SIMULATION
Height:10m; width:7m; Pole distance; 30m;lighting arrange on one side ,simulated data
All In One Solar Street Light With High Powered LED Light Source , 21% High Efficient Solar Panel
