Three Models Off Grid Solar System LiFePO4 Battery MPPT Controller DC Home Appliances

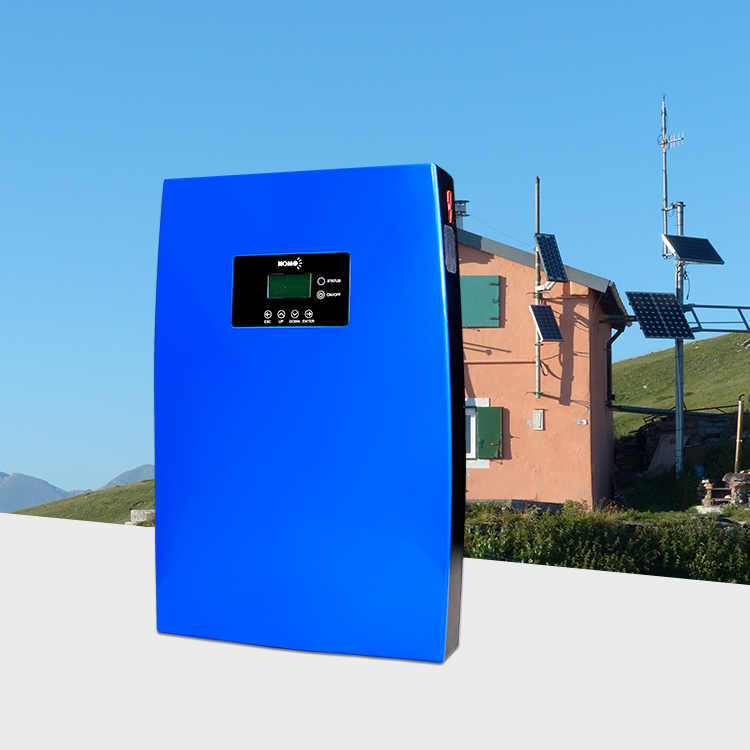

Latest NOMO off-grid solar “POWERWALL”, personally designed by our own team, which converts the solar energy to electricity power, and stores into the energy park, like a small home solar station. It's very suitable for the places which has a good sunshine.

It can offer power to your HOME LIGHTING, DC FAN, LED BULB…. And you can EXPEND the battery capacity as your need.

Off-Grid Solar Home System, suitable for many DC home appliances.

PRODUCT CHARACTERS:

• High efficiency mono/poly solar panel.

• Built in LiFePo4 batter, safe, long lifespan.

• MPPT controller, high efficiency and stable.

• Dual 2.0 USB-2.0A charging function.

• Built in overcharge, over discharge, shortcut, over current, overload, over temperature protection.

• Battery capacity can be expanded.

SPECIFICATION:

Model number: NM-SS-SF-160W-A1

• Solar panel: 160W 18V (with 9M cable)

• Rated input voltage / current: :50V, 15A

• USB output: output current 2A(max)

• DC output voltage / current: 12V, 15A

• Battery: LiFeP04 battery

• Interaction: LCD display and touch operation

• Battery capacity: 512WH, 8 hours charge time

• Package: L620*W450*H155mm

• Optional: Fan, TV, LED bulb, Fridge

Model number: NM-SS-SF-260W-A1

• Solar panel: 260W 30V (with 9M cable)

• Rated input voltage / current: 50V, 20A

• USB output: output current 2A(max)

• DC output voltage / current: 12V, 20A

• Battery: LiFeP04 battery

• Interaction: LCD display and touch operation

• Battery capacity: 768WH ,8 hours charge time.

• Package: L620*W450*H155mm

Model number: NM-SS-SF-320W-A1

• Solar panel: 320W 36V (with 9M cable)

• Rated input voltage / current: 50V, 25A

• USB output: output current 2A(max)

• DC output voltage / current: 12V, 25A

• Battery: LiFeP04 battery

• Interaction: LCD display and touch operation

• Battery capacity: 640WH * 2; 8 hours charge time

• Package: L620*W450*H155mm
