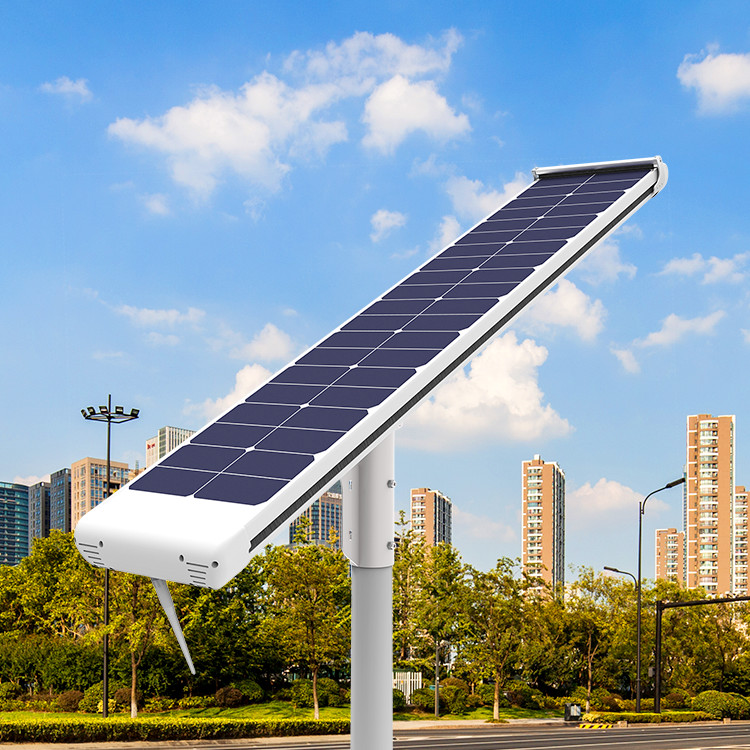

Automatic self-cleaning solar street light is an integrated light , drawer type design, all of the parts are in the light. cableless and free water cleaning.
FEATURES:
1. Easy to install:
It doesn’t require an electrical grid, digging or experience with electricity. All you need to do is to put the light in a sunny spot, let it charge and enjoy.
2. Require no maintenance:
You won’t have to worry about maintenance with using Hyperion Integrated LED Solar Street Light. All they need is to make sure the solar panel on each light working at its best.
3. Cost nothing to operate:
Hyperion series integrated LED Solar Street Light cost nothing, absolutely ZERO, because they run entirely on the sunlight.
4. Integrated design:
LED solar fixtures can be used as area lights, street lights, wall lights, driveway lights, parking lot lights, security night lights, patio lights, flood lights or yard lights.
PARAMETER:
| MODEL | HP- 5000LM with self cleaning system |
| PARAMETERS |
| PV Module | 100W |
| Life Time | 25 Years (The power attenuation of each year is around 1%) |
| LED Luminous | 5000LM (minimum) |
| LED Chip | 5050 LED |
| Viewing Angle | 70°*140° |
| Color Temperature | 3000K-6500K,Typical(5500K-6000K) |
| Color Rendering Index | ＞70 |
| Life Time | ＞5 Years |
| Battery Tape | LiFePo4 Battery |
| Battery Capacity | 384WH |
| Battery Life Time | (5-8 Years) |
| MPPT Charge Controller | Including wireless communication module
(Please see the Communication topology below) |
| Timing Mode | 1Hr 50% ,4Hrs 100%,3Hrs 50%,4Hrs 25%. |
| Infrared induction is optional |
| Circuit Protection | Overcharge, discharge, short circuit, open load, lightning protection and other functions |
| Life Time | 5-8 Years |
| Charging Time (STC) | 6-8 Hrs (Under STC) |
| Certificate | CE, ROSH, IP65, ISO9000, IEC TEST REPORT |
| Working Temperature | -20℃~+60℃ (When the temperature is below -10℃, derating use) |
| Storage Temperature | 0℃~45℃ |
| Protection Grade | IP67 |
| Dimension Size(mm) | 1368*344*84mm |
| Installation Height | 5m to 7m light pole |
| Installation Diameter | <80mm |
| Installation Distance | 15m to20m |
ADAPTIVE ROAD TYPE SIMULATION
Height:10m; width:7m; Pole distance; 30m;lighting arrange on one side ,simulated data
INSTALLATION NOTE:
1.All in one solar street light power can be stored at maximum time of 6 months, after being fully charged.
2.Regular inspection needed, due to longer transportation and storage periods, otherwise battery life will be shortened.
3.In the northern hemisphere, the solar panel facing towards south, gets the best direction for absorbing ideal energy. If this installation done on opposite or either side hemisphere, one must make sure to avoid, any house, trees, or any kinds of shadows covering any part of the panel, which could cause reduction in efficiency and working performance.
4.Always keep the solar panel clean from (dust, tree leaves, greasy dirt, bird poop ).
|
|
